Where it is used
Typical process uses for Shot Blasting Cabinets across industrial surface preparation.
Smaller car parts like bell housings and stabilizing bars are commonly made using sand molds, which enables the use of shot-blasting cabinets to clean the surfaces before further processing.
A shot-blasting cabinet can simultaneously remove surface sand from several tiny metal castings.
Shot-blasting in foundries is most effective when used after production.
A shot blasting cabinet can be used to remove corrosion and rust from metal before processing. It can also be used to finish the process and give the metal a perfect surface.
What to know
Shot blasting cabinet is another type of shot blasting machine which has a cabinet and is a closed form of the machine. In that closed part blasting of contaminants as properly as recycling of shot blasting grit takes place. There are many other functions which are included like cleaning, recycling as well as the collection of dust particles too. In this shot blast cabinet, there is a window from where an operator can see what is going on in the process; there is an opening door from where the blasting material or blasting surface is put inside the cabinet.
As shot blasting grit is used as the abrasive media in the blasting process thus to avoid visibility dust collectors are even connected with the shot blasting cabinets. In shot blasting cabinets the operator does not require any safety gadgets like a safety suit, mask, shot blasting helmet, shoes, gloves, etc. as the whole process is performed inside the shot blast cabinet. This makes an eco-friendly, cost-effective, and pollution-free environment.
Technical Specifications
| Description | MB 91/82 | MB 120/90 | MB 150/120 |
| Working Chamber mm | |||
| Height A | 775 | 900 | 900 |
| Width B | 910 | 1200 | 1500 |
| Depth C | 820 | 900 | 1200 |
| Dust Collector Fan Motor HP | 1 | 1 | 1.5 |
| Fan Capacity CFM | 500 | 500 | 800 |
| Filter Cloth Area (Sq.M) | 7.5 | 7.5 | 10 |
| Blast Hose I.D (mm) | 19 | 19 | 19 |
| Blast Nozzle mm | 5,6 | 5,6 | 6,8 |
| Compressed Air Rear (CFM) | 45 | 56 | 70 |
| Abrasive Storage Capacity Liters (CFT) | 28(1.0) | 42(1.5) | 42(1.5) |
Generally shot blasting is carried out in a blasting cabinet or a large container, the size of which depends on the size of the component being cleaned; sometimes it is a shipping container and sometimes it is a blasting cabinet as small as 500x500mm.
Surface preparation is greatly aided by the use of a shot blasting cabinet. The separator will separate the abrasive from the bust in this machine, which includes a cyclone separation system and a dust removal system. This technology's dust removal system can handle and collect unwanted dust, lowering the cost of abrasive and increasing the efficiency of practically any type of surface. The best aspect about this machine is that it is environmentally friendly; there will be no pollution at your location throughout the operation.

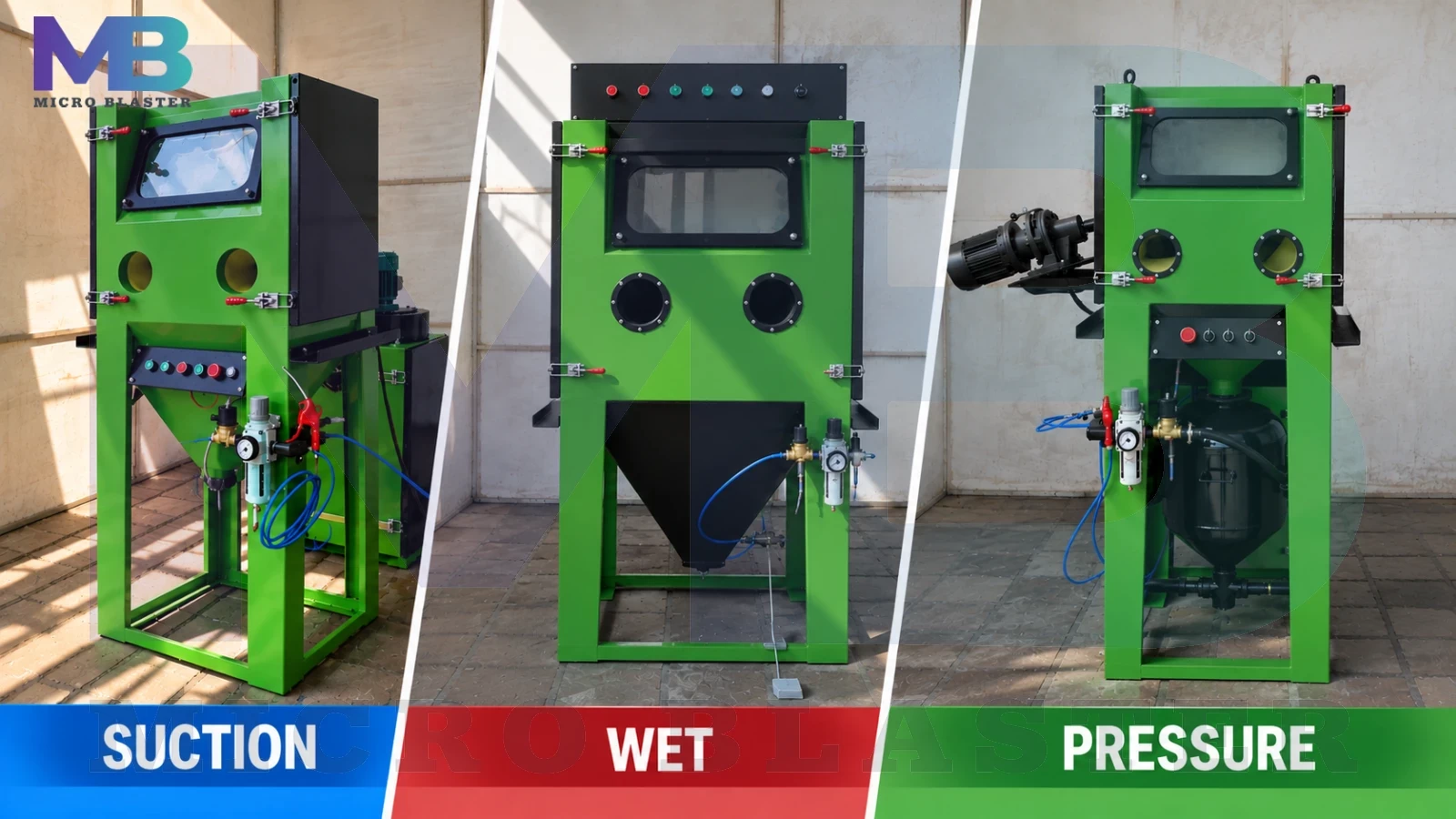

Choosing the right shot blasting cabinet can be difficult, but we are here to help. Suction Blasting Cabinets and Pressure Blasting Cabinets are the two most common types of shot blasting cabinets.
Suction Blasting Cabinet is better suited for low production and mild surface preparation. Some heavier blasting media are also incompatible with suction shot blasters. They consume less air, but they lack the power and versatility of a pressure cabinet.
Pressure Blasting Cabinet is a more popular option since it can handle a wider range of blasting media and operate at higher pressures. When compared to a suction bead blaster, the main advantage is the volume of blasting media they can propel; the greater quantity over suction cabinets can boost performance by up to 7 times; this reduces cleaning times substantially. The capacity to employ larger, heavier blasting material allows the operator to create a wider range of surface finishes, which is important for some businesses.
Micro blaster is the leading & best Manufacturer, Supplier & Exporter of Large & Small Shot Blasting Cabinet, Suction Blasting Cabinet, Pressure Blasting Cabinet, Wet Blasting cabinet, Bench Top Sand blasting Cabinet in Jodhpur, Rajasthan, India at a low price for sale. Shot blasting Cabinets are created according to the customer needs by Micro Blaster.
Enquiry form
Fields marked with * are required.
FAQ
Quick clarity on quotation, supply and what our team needs to size Shot Blasting Cabinets correctly.
Shot Blasting Cabinets is a blast abrasive used in surface preparation and peening processes. It is selected by size, hardness and shape to match the base material, required surface profile and whether the application needs cleaning, profiling or shot peening.
Shot Blasting Cabinets is used in grit blasting and shot blasting operations across fabrication, foundry, automotive, pipeline, shipyard and general engineering. Typical jobs include rust and scale removal, weld cleaning, anchor profile before coating, and peening of stressed components.
Share your application, required grade or size, monthly or project quantity, packing preference and delivery city or port. Micro Blaster quotes manufacturer-direct with clear scope for packing, freight and documentation — not a generic list price.
Shot Blasting Cabinets is supplied in standard bags or drums suited to bulk industrial use, with batch-wise size consistency. Domestic and export orders are supported; mention your preferred packing and destination when requesting a quotation.
Most enquiries for blast media receive a technical and commercial reply within one business day during working hours. Include quantity, application and delivery location for the fastest response.
