Where it is used
Typical process uses for Sand Blasting Cabinet across industrial surface preparation.
Removes rust – mill – heat scale and carbon buildup from metals
Strip paint, powder coating, plating, and anodizing from parts for rework
Eliminate burrs, parting lines, flashings, and other defects from castings and injection-molded parts
Extract residual sand from castings
Beautify mild steel, stainless steel, aluminum, brass and other metals with a uniform matte finish
Etch artwork and lettering into glass, stone, plastics, metal and other materials
Clean release agents and material buildup from molds
What to know

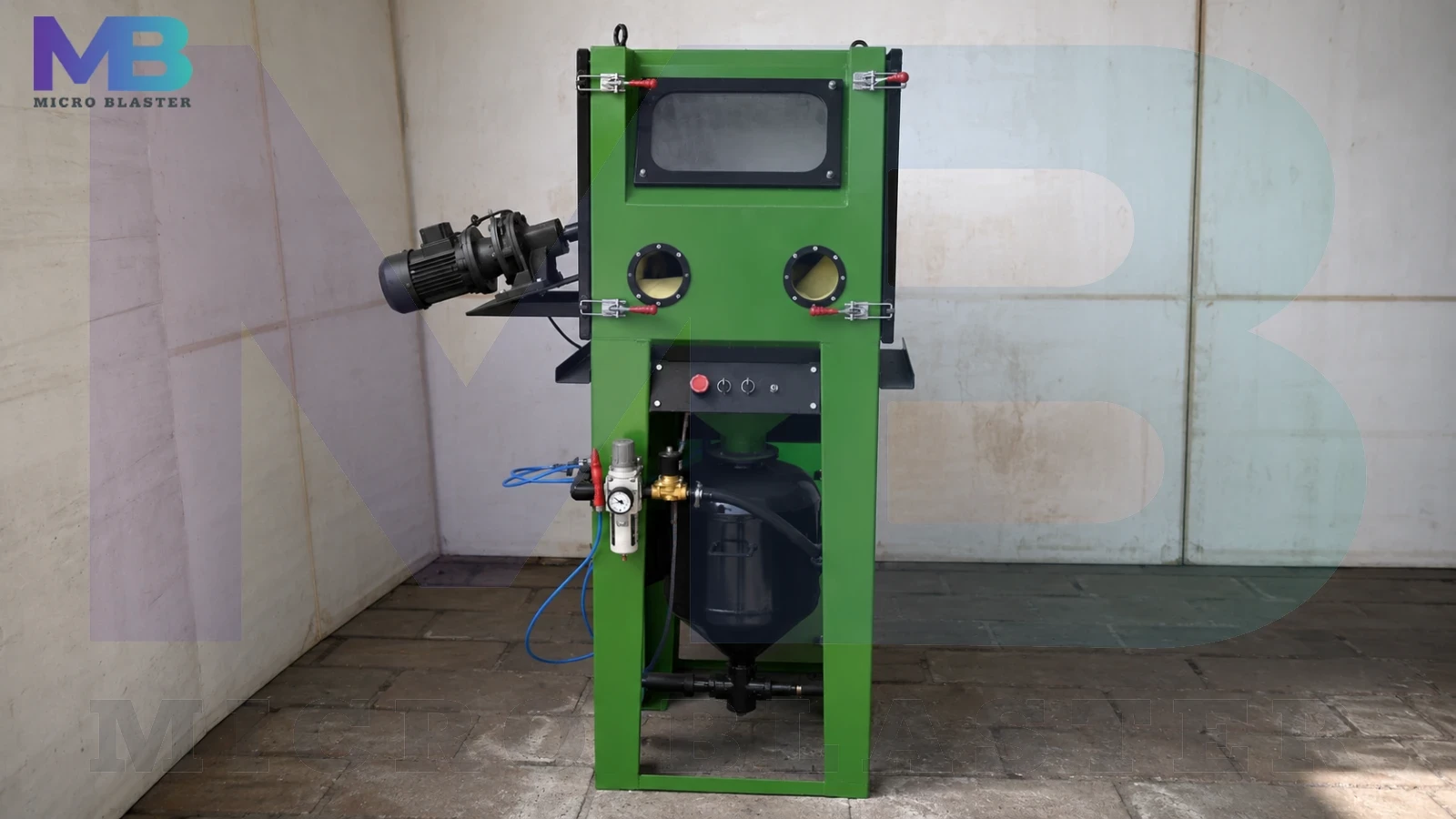

Sand blasting cabinet is another type of sand blasting machine which has a cabinet and is a closed form of the machine. In that closed part blasting of contaminants as well as recycling of sand blasting grit takes place. There are many different functions which are included like cleaning, recycling as well as the collection of dust particles too. In this sand blasting cabinet, there is a window from where the operator can see what is going on in the process; there is an opening door from where the blaster material or blaster surface is kept inside the cabinet.

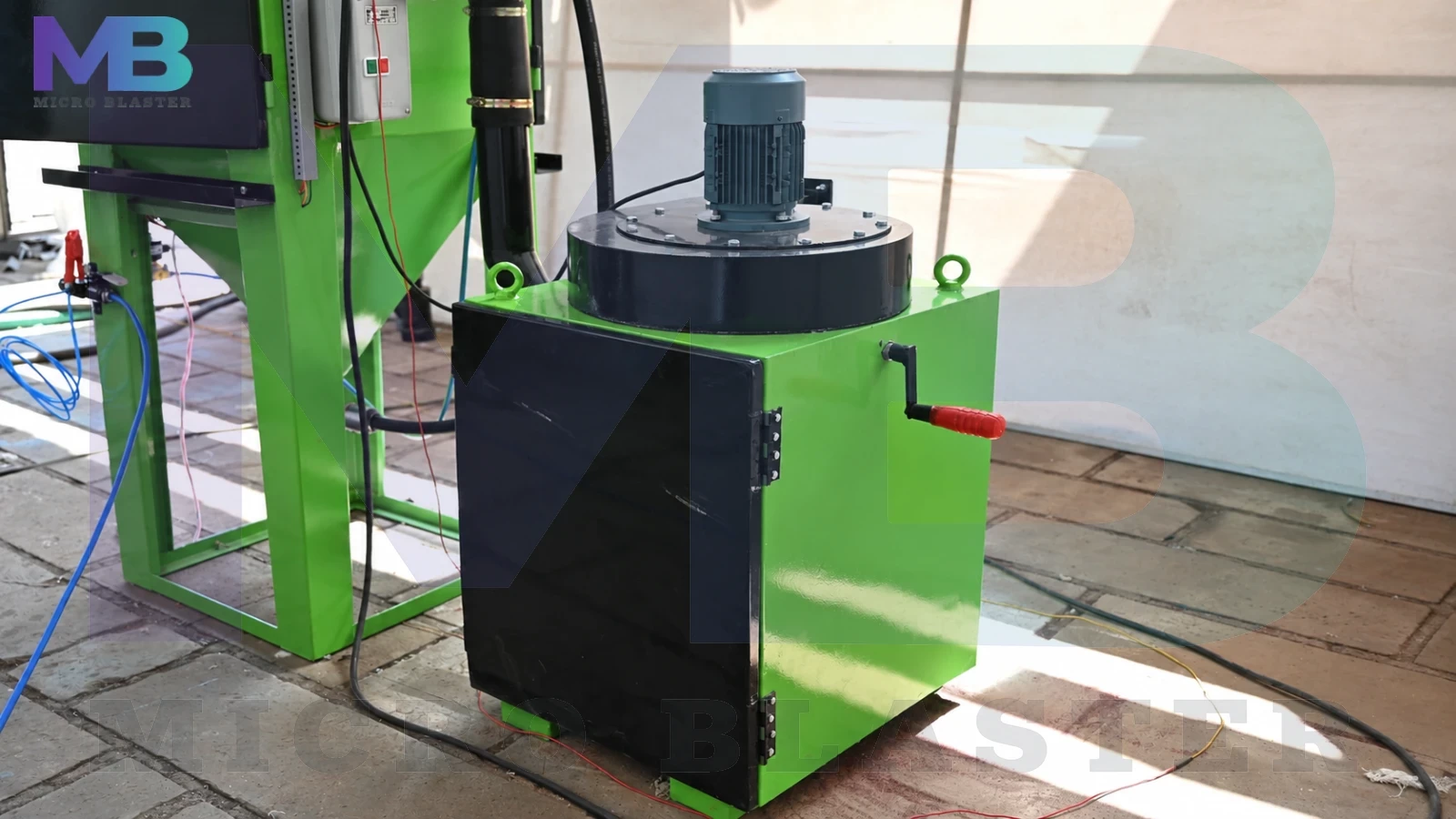

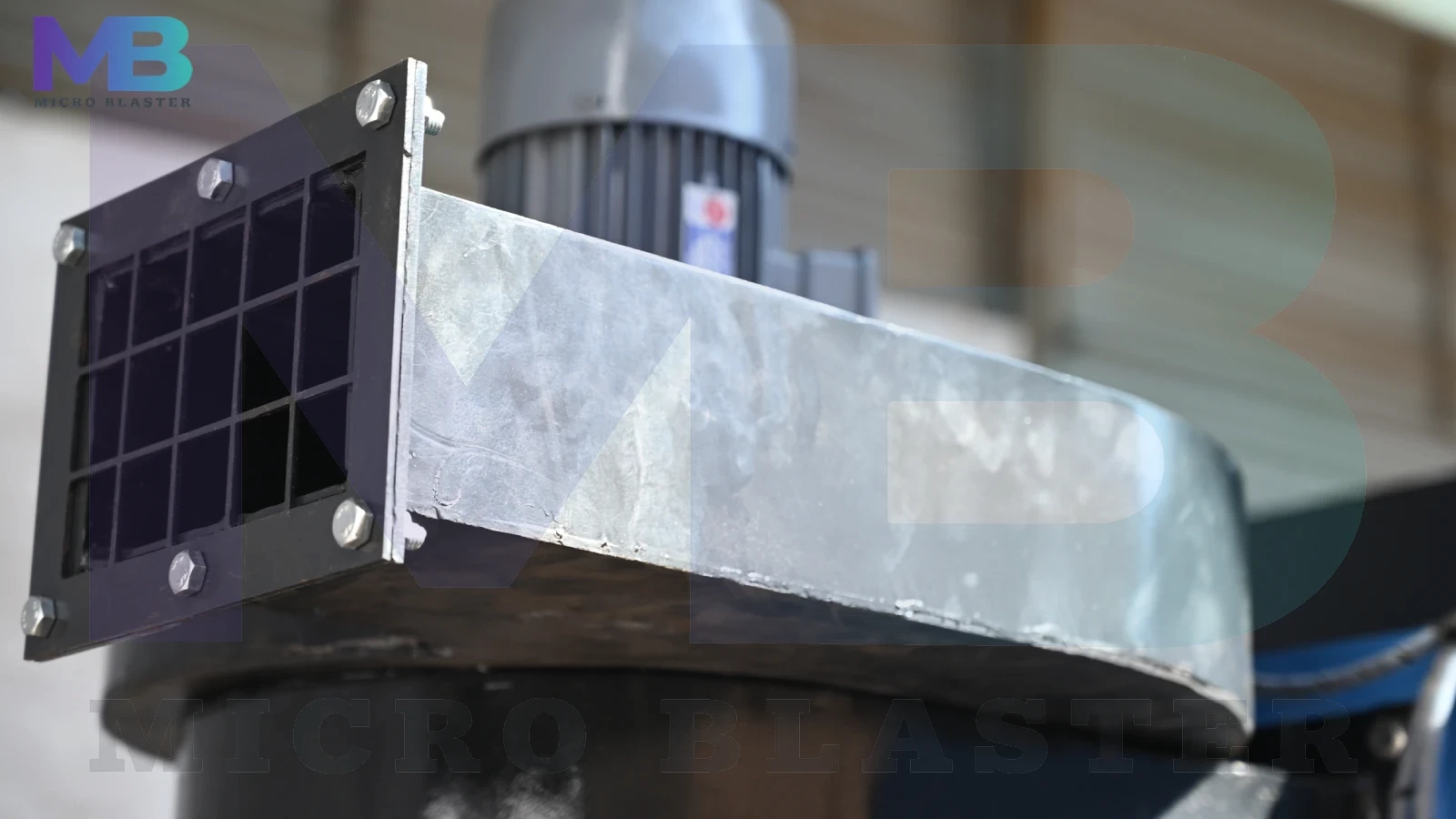

As sand blasting grit is used as the abrasive material in the blasting process thus to avoid visibility dust collector are even connected with the sand blasting cabinets. In sand blasting cabinets the operator does not require any safety gadgets like a safety suit, mask or sand blasting helmet, shoes, blasting gloves, etc. as the whole process is performed inside the sand blast cabinet. This makes an eco-friendly, cost-effective, and pollution-free environment.
| Description | MB 6060 | MB 9182 | MB 12090 |
| Working chamber(mm) | (l)600x(w)600x(h)600 | (l)900x(w)910x(h)900 | (l)900x(w)1200x(h)900 |
| Door opening(mm) | (w)500x(h)500 | (w)730x(h)675 | (w)800x(h)800 |
| Overall dimension (mm) | (l)1500x(w)800x(h)1660 | (l)1400x(w)1070x(h)2000 | (l)1700x(w)1365x(h)2570 |
| Compressed air required(cfm) | 17 | 20 | 47 |
| Cleaning area (sq. mt/Hr) | 4-7 | 4-7 | 15-21 |
| Nozzle (mm) | 5/6 | 5/6 | 10 |

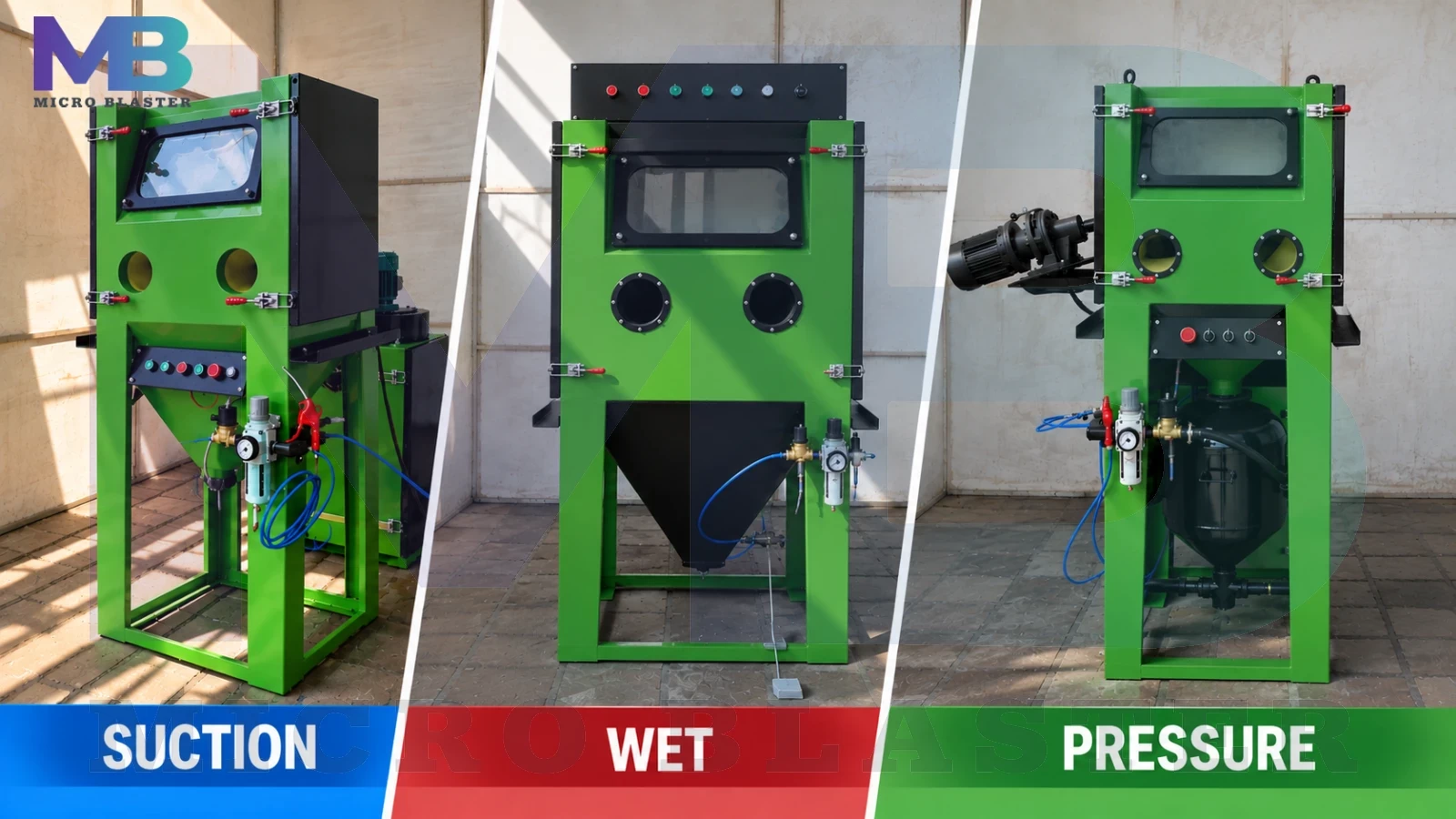

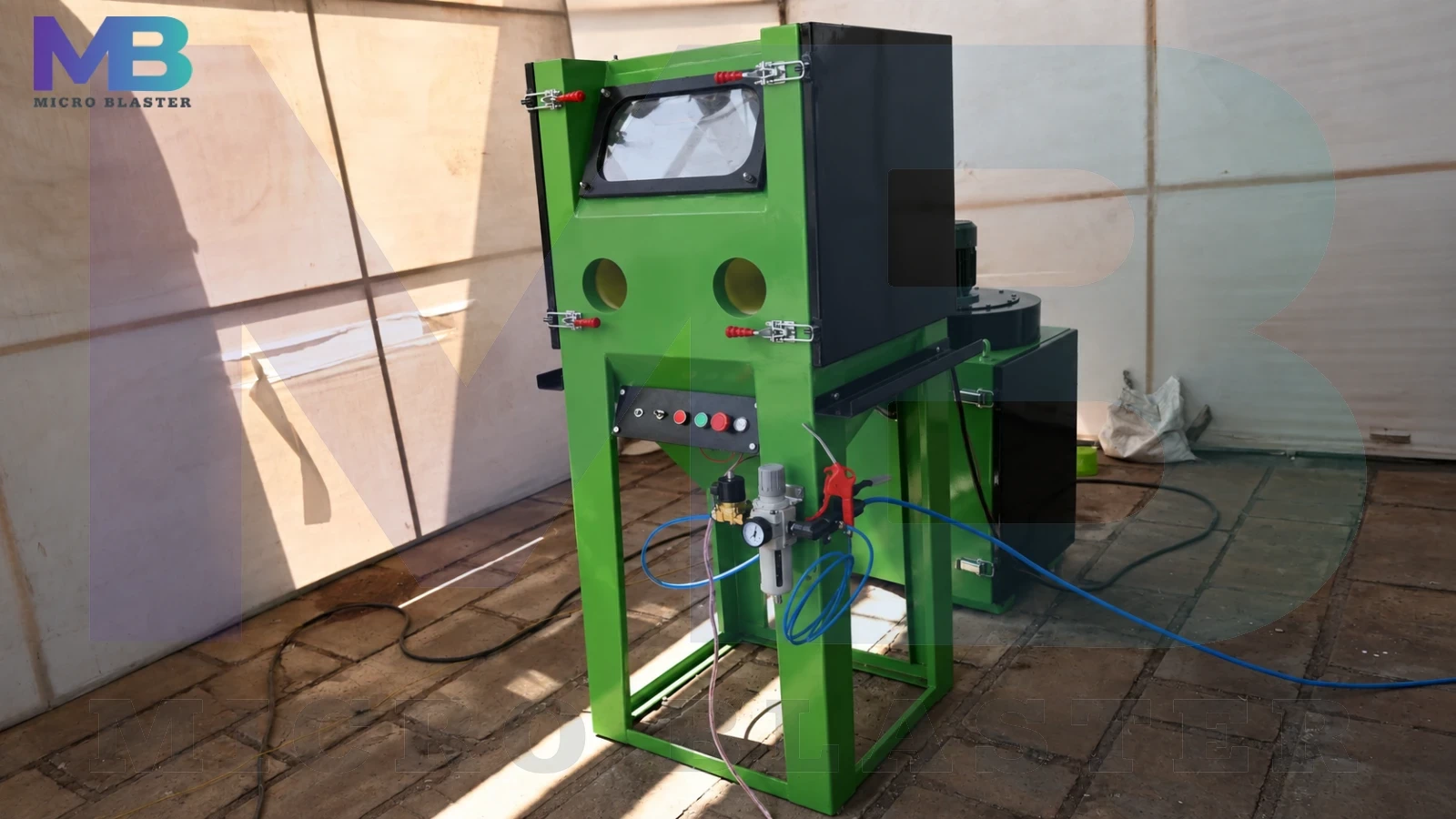

Suction blasting cabinets are less expensive and easier to use than pressure blasting cabinets. They can also keep blasting without having to pause for media re-fills. When compared to a pressure system, the blasting velocity is substantially lower, despite the lower output rates. The suction system is an excellent alternative when initial cost and maintenance are important issues.

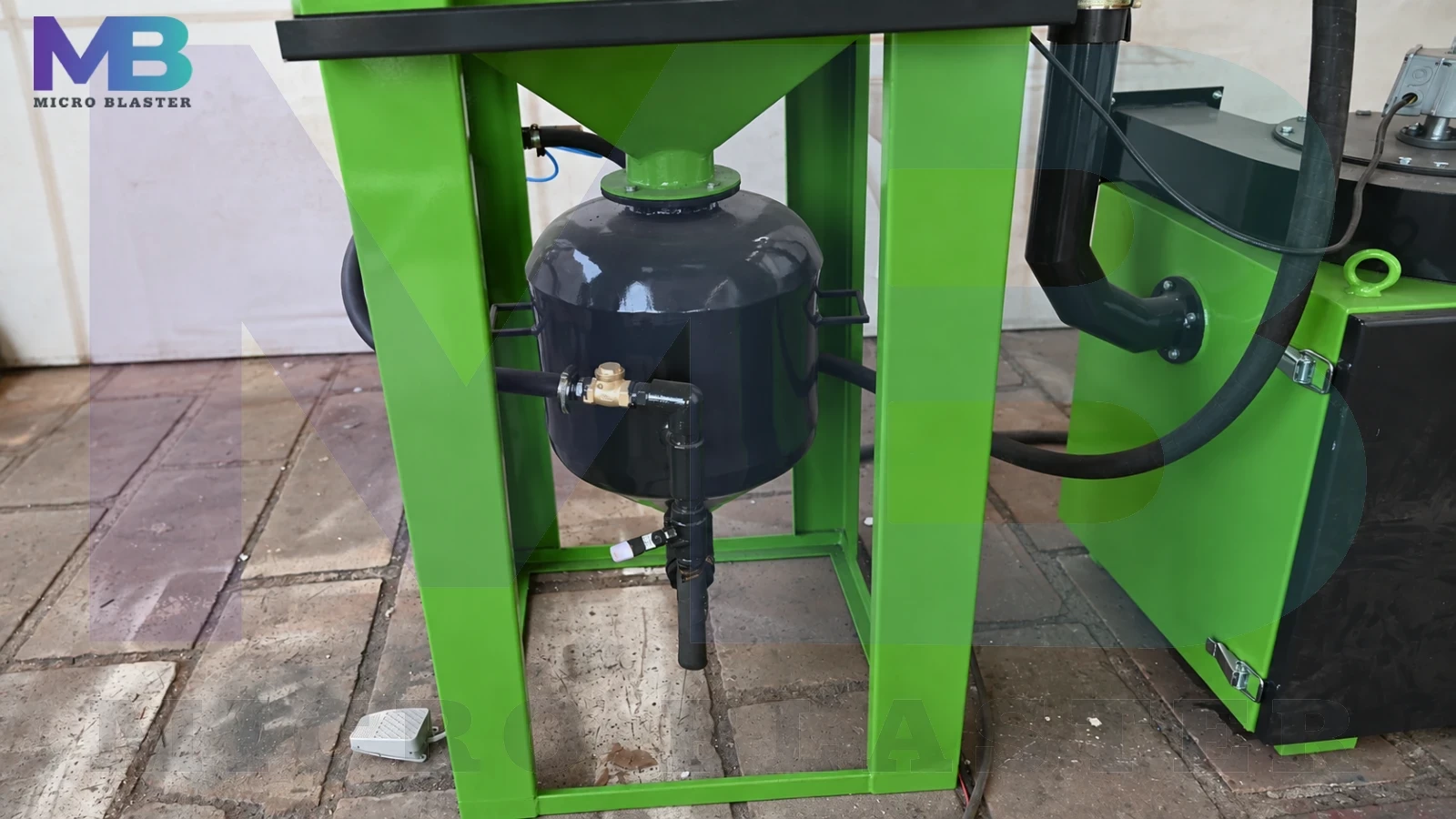

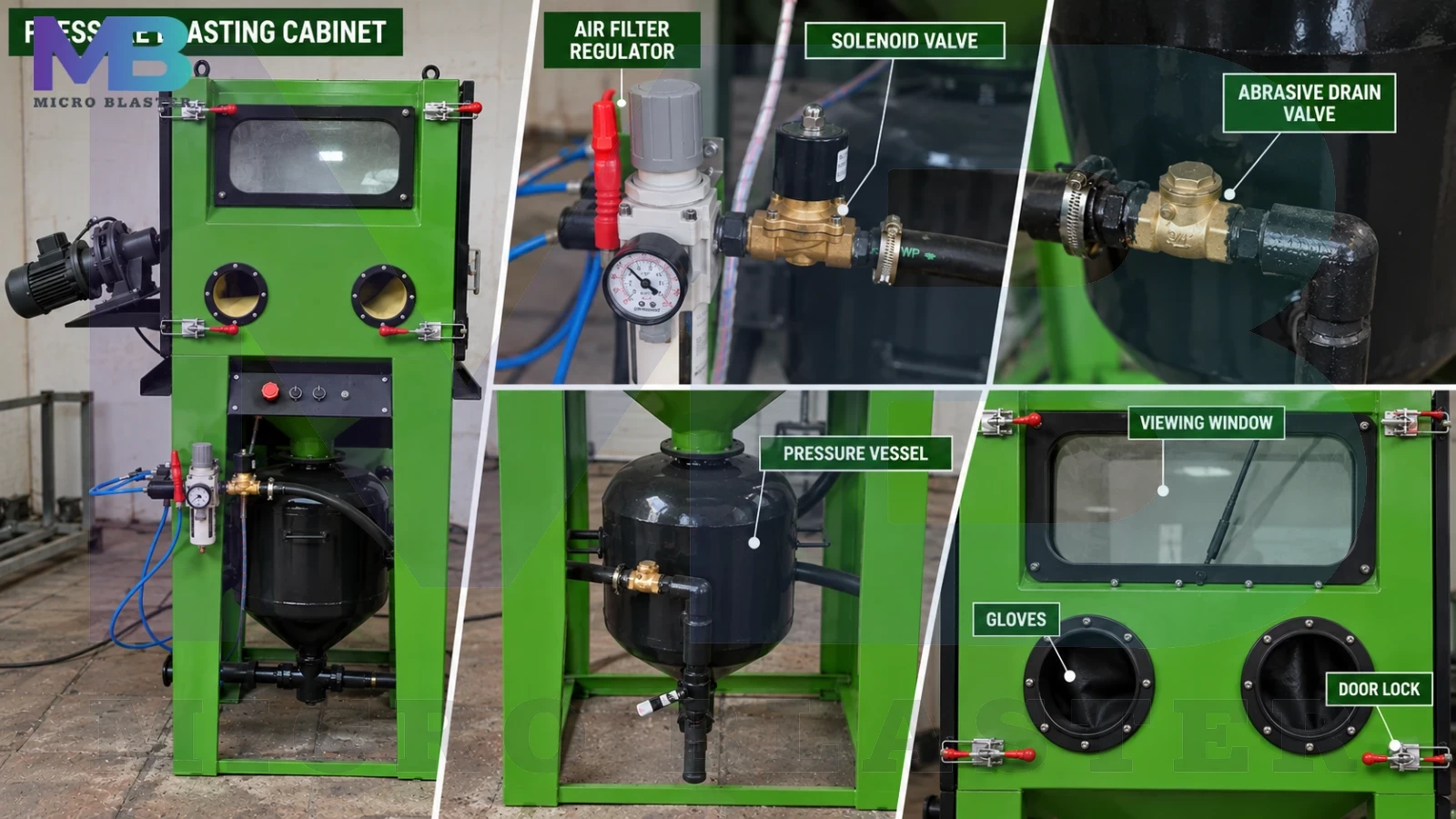

Pressure Blasting Cabinets are used for cleaning difficult work. When compared to suction blasting, pressure blasting delivers more abrasive Velocity for faster impact and intensity, and can enhance your production rate by three times. Media used is steel abrasive, sand, garnet, aluminum oxide, glass bead, etc.

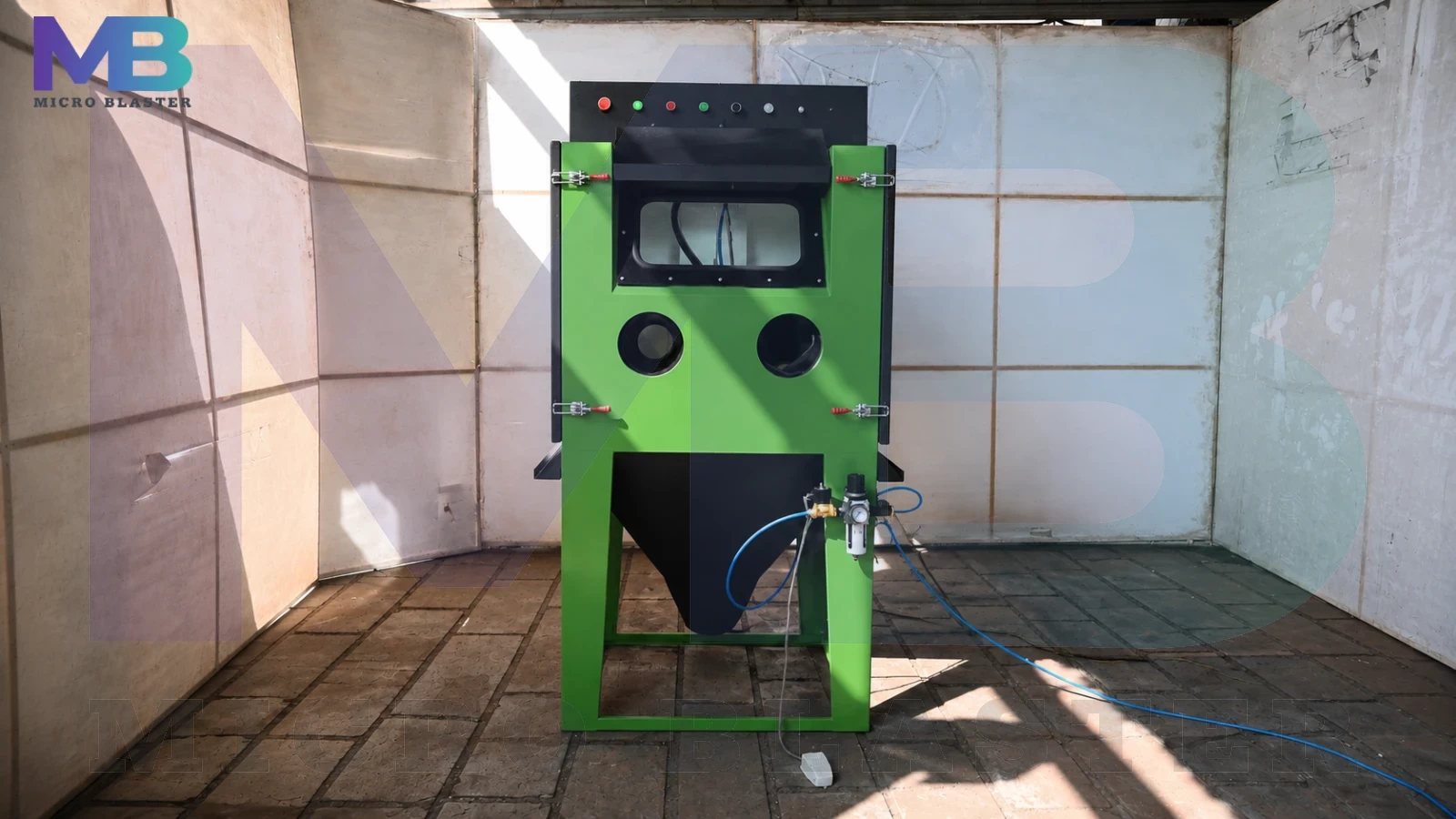

A wet blasting cabinet can utilise very fine abrasive, as little as 5 microns. Wet blasting takes place on the job when fine abrasive particles are combined in water and pumped to a nozzle as slurry. The slurry is then exposed to compressed air in the blast gun and wet blasting takes place. The slurry is fed into the blast gun at positive pressure using the glandless slurry pump.
The pump is resistant to corrosion. De-bering intersecting holes in precision pieces that are inaccessible by any other means is done in wet blast cabinets. For degreasing and finishing of various aero and vehicle components, the finest machined surface can be super polished without causing harm to sharp edges or perfect tolerances.
Because of the intense blast medium, sand blasting cabinets are prone to self-destruct. Blaster parts are consumable, and as abrasive or media flow over or through them, they will wear down over time.
The blast media or abrasive grits are, of course, consumable. Steel shot, ceramics, and aluminium oxide are examples of blast media that can be recycled a hundred times or more. Only one use of soda, dry ice, sand, and coal slag is made.
Parts in abrasive blasters, wheel blasters, and shot peeners must be evaluated for wear on a regular basis. When the inner diameter of the nozzle or the geometry of the throwing blades changes, the blasting process’ efficiency can be jeopardised.
Sand Blasting Cabinet Include:
Micro blaster is the leading Manufacturer, Supplier & Exporter of Sand Blasting Cabinet in India. We have a large range of different types of sand blasting cabinets such as, Suction Blasting Cabinet, Pressure Blasting Cabinet, Wet Blasting cabinet, Bench Top Sand Blasting Cabinet, etc in Rajasthan, India at a low price for sale.
Dry and wet blasting cabinets are available in our variety of blast cabinets. We have injector cabinets and pressure blasting cabinet for dry blasting. We also have blast cabinets that are specifically intended for finishing 3D printed plastic or metal products.
Do you need a competent blast cabinet and have high expectations for the blasting process? The best results come from Micro Blaster blast cabinets.
Our Packaging/Payment and Shipment Details
| Delivery Time | 1-2 weeks from the date of confirmation of Purchase Order and Advance. |
| Production Capacity | 12-15 Nos. Per Annum |
| Packaging Details | Poly Packaging |
| Shipment Mode | By Air By Road By Cargo |
| Payment Terms | Cash Cheque DD Credit Card |
Because of their durable design, great finishing, high durability, and extended practical life, our given items have won a lot of popularity in the market. We create these products using high-quality raw materials and cutting-edge technology to provide our customers with remarkable results. Our unwavering commitment to high-quality manufacture and delivery has resulted in a sizable customer.
Enquiry form
Fields marked with * are required.
FAQ
Quick clarity on quotation, supply and what our team needs to size Sand Blasting Cabinet correctly.
Sand Blasting Cabinet is a surface preparation system that uses compressed air or a blast wheel to propel abrasive media against metal components. It is built for industrial cleaning, descaling, deburring and profile generation before painting or coating.
Sand Blasting Cabinet is used where repeatable blast quality, controlled dust handling and efficient media recovery matter — such as fabrication shops, OEM plants, job-coating units and maintenance yards. Share your part size and daily volume for application-specific sizing.
Provide component dimensions, required finish (e.g. Sa 2.5), estimated throughput, power availability and delivery location. We quote the correct configuration with installation scope, spare parts and commercial terms — not an off-the-shelf brochure price.
Yes. Micro Blaster supports commissioning guidance, operator orientation, wear-part supply and technical assistance for Sand Blasting Cabinet. Domestic installation and export documentation can be arranged based on project scope.
Product enquiries for blasting equipment typically receive a technical and commercial reply within one business day. Drawings, photos or sample parts help us recommend the right model faster.
