Where it is used
Typical process uses for Rotary Barrel Type Machine across industrial surface preparation.
The simple and reliable impeller head is constructed of blast wheels.
The machine is controlled by a PLC, which makes using it easy and dependable.
This equipment is made with a durable structure.
The machinery runs with faultless performance.
Very minimal maintenance is needed for this machine.
The machine features a 4 MM CFT and a 150 KG load capacity.
The blast wheel is protected by the highly effective segregator as well.
Bag dust filters greatly improve productivity while lowering air pollution.
The abrasion-resistant rubber belt softens the blow of colliding workpieces and lowers noise.
What to know
| Description | Model RBF-1 | Model RBF-2 |
| Flow Rate of Wheel (Kg./Hr.) | 1135 | 6000 |
| Size of Barrel (in mm) | 575 x 625 L | 900 x 950 L |
| Barrel Capacity (Kg.) | 100 | 150 |
| Barrel Effective Volume (cft) | 1.5 | 3 |
| Barrel RPM | 5-7 | 5-7 |
| Loading Height (mm) | 370 | 370 |
| Type of Dust Collector | Fabric Bag | Fabric Bag |
| Dust Collector Capacity (cfm) | 400 | 1200 |
| Hp of Dust Collector | 1 | 3 |
| Total Power Requirement (HP) | 5 | 15 |
| Initial Charge of Abrasive (Kg.) | 35 | 200 |
| Abrasive Blast Cleaning Cycle | 15-20 Min. for Cast Iron | 15-20 Min. for Cast Iron |
Dimension: Rotary shot blast machine with Dust Collector
| Length(mm) | 2100 | 2800 |
| Width(mm) | 1700 | 2850 |
| Height(mm) | 2100 | 3200 |
Dimension of Dust Collector
| Lenght(mm) | 900 | 800 |
| Width(mm) | 700 | 1200 |
| Height(mm) | 2100 | 2400 |
Floor Space required for rotary shot blast machine with Dust Collector
| Lenght(mm) | 3400 | 2600 |
| Width(mm) | 2500 | 3800 |

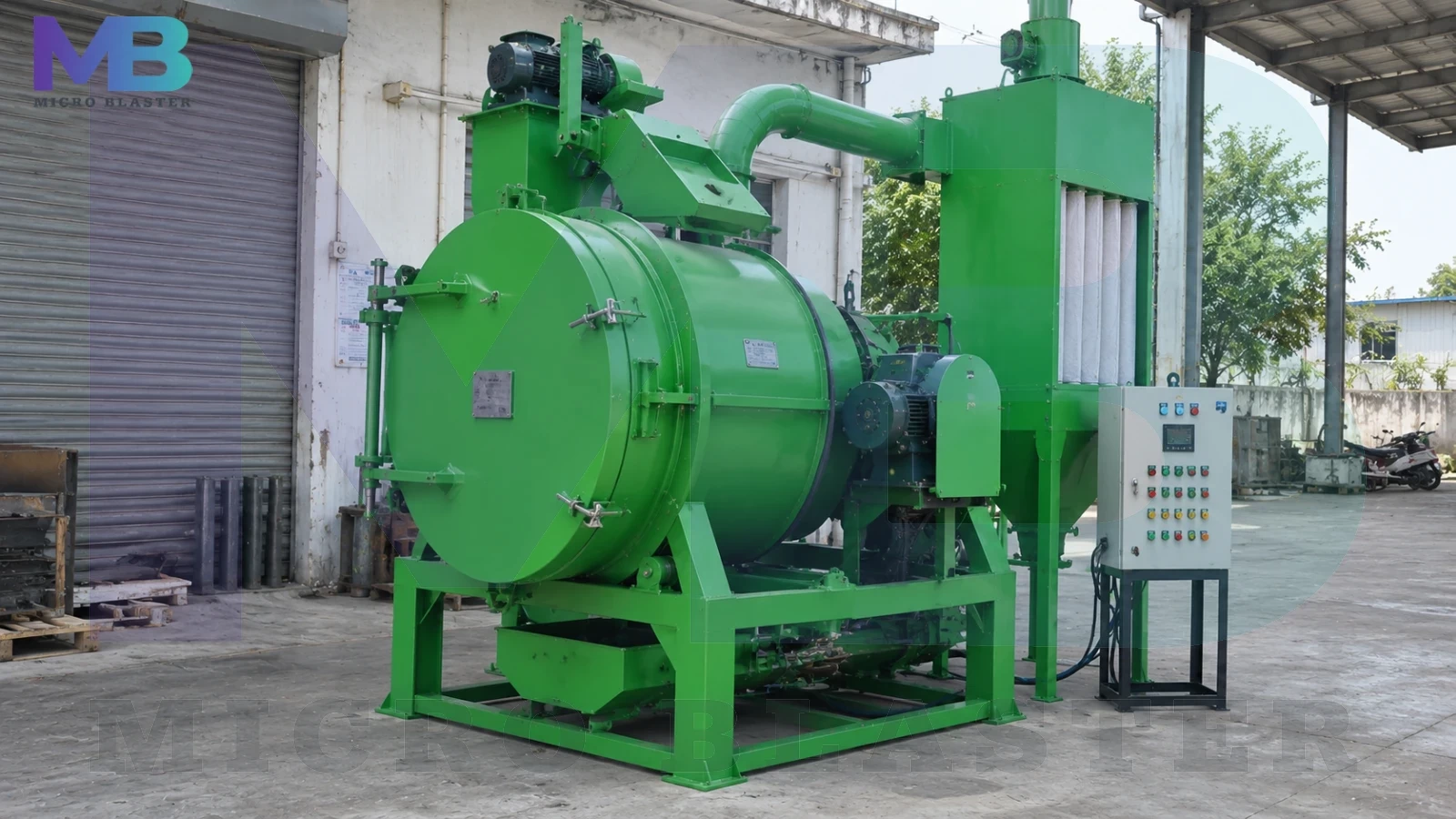

Rotary Barrel Shot Blasting Machine is optimum shot blasting for small, flat, and light components. It is also called a drum-type shot blasting machine. It is probably the smallest batch cleaning machine in a family of Airless Shot Blasting Machines. Drum-type shot blasting machine is a smaller version of tumblast machine. The rotary shot blasting machine is provided to the customer with a control panel and electronic timer as a standard supply policy. Drum type shot blasting machine is suitable for small and moderate job shops, foundries & forging units.
Rotary Barrel Shot Blasting Machine is manufactured for shot blast cleaning of small or medium-sized industries and is designed at the lowest possible cost.
We are manufacturer, exporter and supplier of Rotary Barrel Shot Blasting Machine in India. Rotary Barrel Type Machine from Micro Blaster automate production sequences and improve the work environment in the Industry. Shot Blasting Machine price depends on the size of the job and production capacity.
Blaster are provide service in all cities as (Jodhpur, Alwar, Faridabad, Gurgaon, Noida, Jaipur, Bhiwadi, Ghaziabad, Madurai, Coimbatore, Kolkata, Agra, Mumbai, Pune, Kolhapur, Solapur, Chennai, Bangalore) at low cost, best price with the best quality.
Enquiry form
Fields marked with * are required.
FAQ
Quick clarity on quotation, supply and what our team needs to size Rotary Barrel Type Machine correctly.
Rotary Barrel Type Machine is a surface preparation system that uses compressed air or a blast wheel to propel abrasive media against metal components. It is built for industrial cleaning, descaling, deburring and profile generation before painting or coating.
Rotary Barrel Type Machine is used where repeatable blast quality, controlled dust handling and efficient media recovery matter — such as fabrication shops, OEM plants, job-coating units and maintenance yards. Share your part size and daily volume for application-specific sizing.
Provide component dimensions, required finish (e.g. Sa 2.5), estimated throughput, power availability and delivery location. We quote the correct configuration with installation scope, spare parts and commercial terms — not an off-the-shelf brochure price.
Yes. Micro Blaster supports commissioning guidance, operator orientation, wear-part supply and technical assistance for Rotary Barrel Type Machine. Domestic installation and export documentation can be arranged based on project scope.
Product enquiries for blasting equipment typically receive a technical and commercial reply within one business day. Drawings, photos or sample parts help us recommend the right model faster.
