Where it is used
Typical process uses for Hanger Type Shot Blasting across industrial surface preparation.
Welded steel structures
Deburring and homogenizing are done to diecast parts.
Components under dynamic stress are being penned.
Elimination of rust, forge scale, and mill scale.
Removing burrs and scale.
A sharpening of the surface grain.
Shot peening to increase resistance to fatigue.
What to know

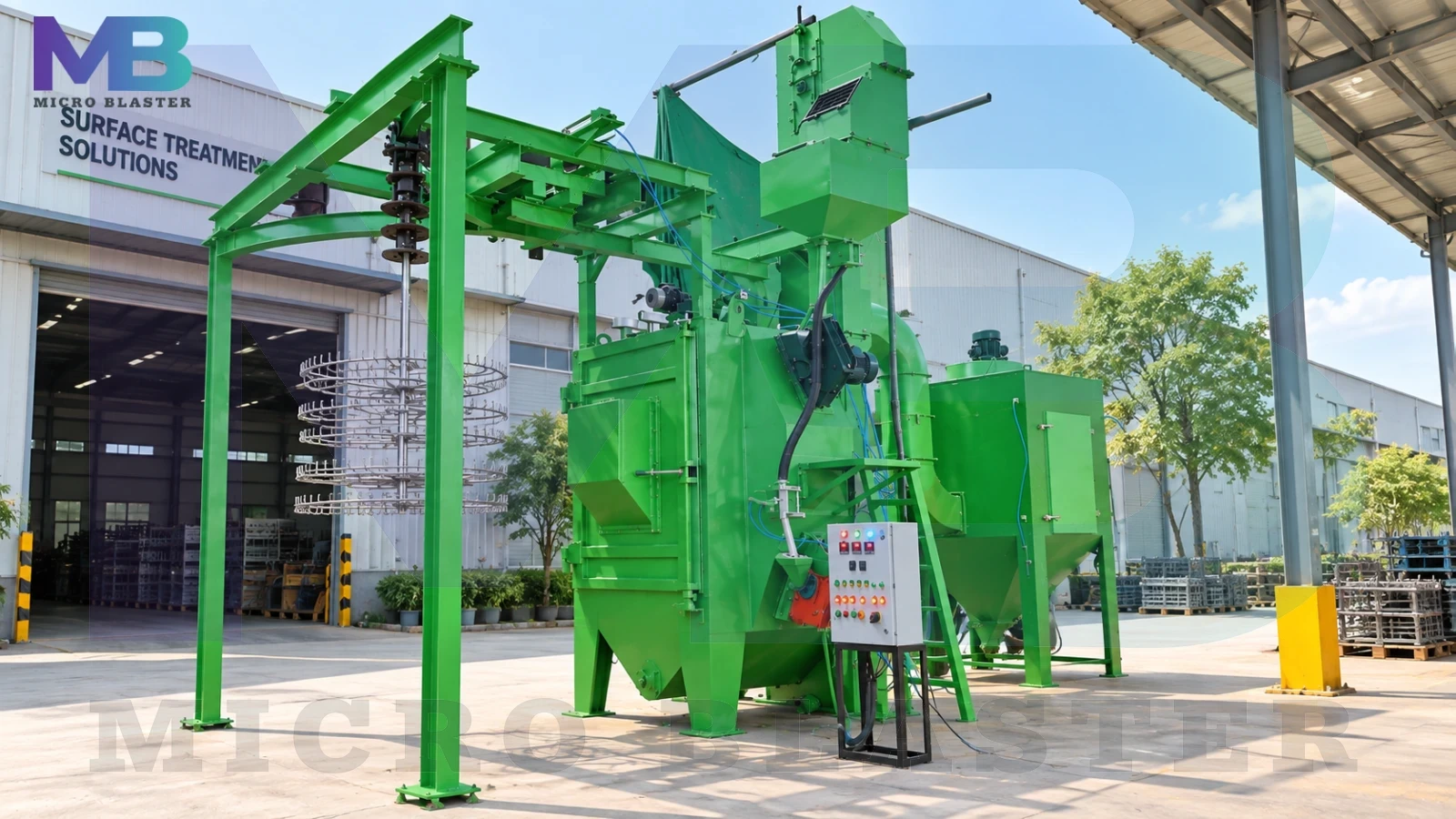

Hanger Type Shot Blasting Machine is named so because in this type of machine components will be hanged on the hanger and can be rotated, components are rotating so it’s also called as spinner hanger blasting machine. In spinner hanger shot blasting machine or hook type shot blasting machine hanger are mounted on the doors of the shot blasting machine cabinet. For the blasting operation, the door of the machine is opened where blasting is done and components are loaded onto the hanger. Then the door is closed and the blast wheel system is operated. 2 Nos. of blast wheel stations are located strategically around the cabinet which fires abrasive material or media on the rotating components loaded on the hanger in spinner hanger shot blasting machine. The components are shot blasted homogeneously all around the rotating hanger and thus clean the components effectively in a hook-type shot blasting machine. After the blast cleaning cycle is over, the blast wheel is shut off and the door is opened for unloading of components which is done manually.
There are three types of hanger type shot blasting machines or hook type shot blasting machine available which can be listed as follows:

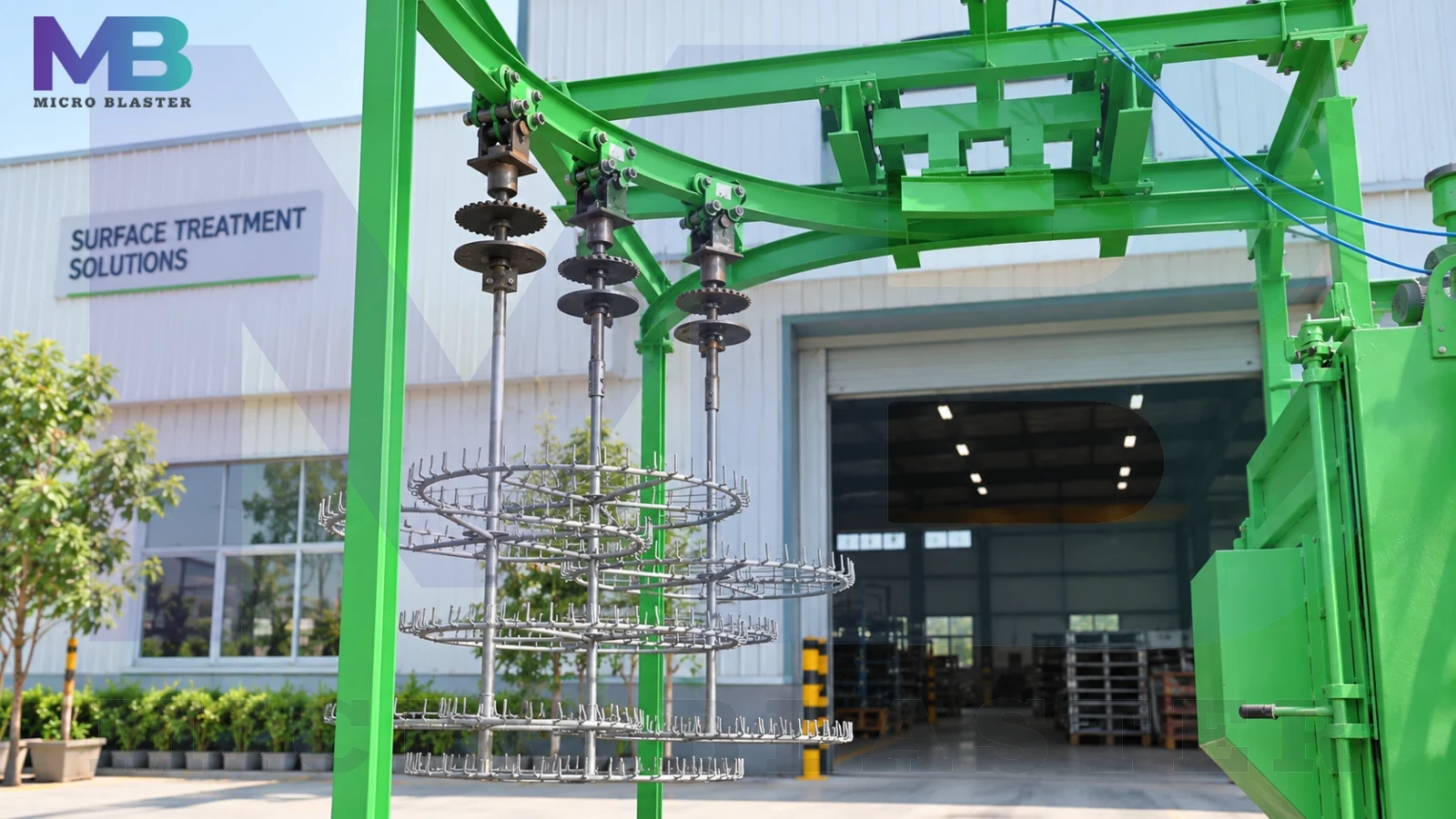

Closed Loop Hanger Type Shot Blasting Machine consists of a close-loop conveyor system which consists of 6 No’s (or more as per requirement) of chain-driven trolleys with fixtures to hold the hangers. The components or pieces which are to be shot blasted are placed on these hangers and one by one taken inside the blast chamber for blasting purpose by the chain-driven mechanism system. Blast wheel stations are located strategically around the cabinet and with high-velocity abrasive material are shot on a rotating hanger that contains components in hook type shot blasting machine. The components are shot blasted evenly all around. After the blast cleaning cycle is over, the blast wheel is shut off and hanger is taken out for the unloading process of a component in the spinner hanger blast machine. This makes the process continues with the next hanger placed on the chain-driven trolley.
The door of the machine is opened automatically or manually and components or pieces are loaded onto the trolley mounted hanger. The door is then closed and the blast wheel system is operated in a spinner hanger blast machine or hook type shot blasting machine. The abrasive at high speed falls upon the components on the rotating hanger, hanger rotates in both clockwise & Anti-clockwise directions and for a definite time period set by the operator, and thus blast cleans the components thoroughly. After the blast cleaning cycle is over, the blast wheel is shut off and the door is opened and the hanger moves out for unloading of pieces or blasting surfaces. At the instant time, another hanger on the Y-track moves in for blasting purposes.
Indoor type Hanger Blasting Machine the components are hanged and rotated on the gate or the door of the machine so that blasting can be done on all sides. In this machine, the hanger is mounted on the doors of the shot blasting machine. For the blasting operation, the door of the machine is opened either manually or pneumatically and then components are loaded onto the door hanger. Then the door is closed and the blast wheel system is operated. Blast wheel stations are located strategically around the cabinet & abrasive material or media are propelled on rotating components. The components are shot blasted homogeneously all around on the rotating hanger and blast cleans the components or pieces loaded on them. After the blast cleaning cycle is over, the door is opened for the unloading of components that can be done manually or automatically.
We are manufacturer and supplier of spinner hanger shot blasting machine in India and We provide service in all cities as (Jodhpur, Jaipur, Bhiwadi, Alwar, Faridabad, Gurgaon, Noida, Ghaziabad, Agra, Mumbai, Pune, Kolhapur, Solapur, Chennai, Bangalore, Madurai, Coimbatore, Kolkata ) at low cost, best price with the best quality.
Enquiry form
Fields marked with * are required.
FAQ
Quick clarity on quotation, supply and what our team needs to size Hanger Type Shot Blasting correctly.
Hanger Type Shot Blasting is a blast abrasive used in surface preparation and peening processes. It is selected by size, hardness and shape to match the base material, required surface profile and whether the application needs cleaning, profiling or shot peening.
Hanger Type Shot Blasting is used in grit blasting and shot blasting operations across fabrication, foundry, automotive, pipeline, shipyard and general engineering. Typical jobs include rust and scale removal, weld cleaning, anchor profile before coating, and peening of stressed components.
Share your application, required grade or size, monthly or project quantity, packing preference and delivery city or port. Micro Blaster quotes manufacturer-direct with clear scope for packing, freight and documentation — not a generic list price.
Hanger Type Shot Blasting is supplied in standard bags or drums suited to bulk industrial use, with batch-wise size consistency. Domestic and export orders are supported; mention your preferred packing and destination when requesting a quotation.
Most enquiries for blast media receive a technical and commercial reply within one business day during working hours. Include quantity, application and delivery location for the fastest response.
