Grit Blasting
Enquire now
Datasheet
Where it is used
Typical process uses for 500 Kg Portable Grit Blasting Machine across industrial surface preparation.
The Grit Blaster P7 500 makes cleaning surfaces simple.
After painting, it adds a little more roughness to the surface, improving both its longevity and appearance.
We can improve the dependability and durability of the material by removing impurities such as corrosion, rust, dust, and other
contaminants with sandblasting.
The portable grit blasting machine is the most efficient method of cleaning a surface.
The grit blaster makes it simple to remove dust and other undesirable particles from surfaces.
The Grit Blaster P7 500 is used for the final polishing of the surfaces.
What to know

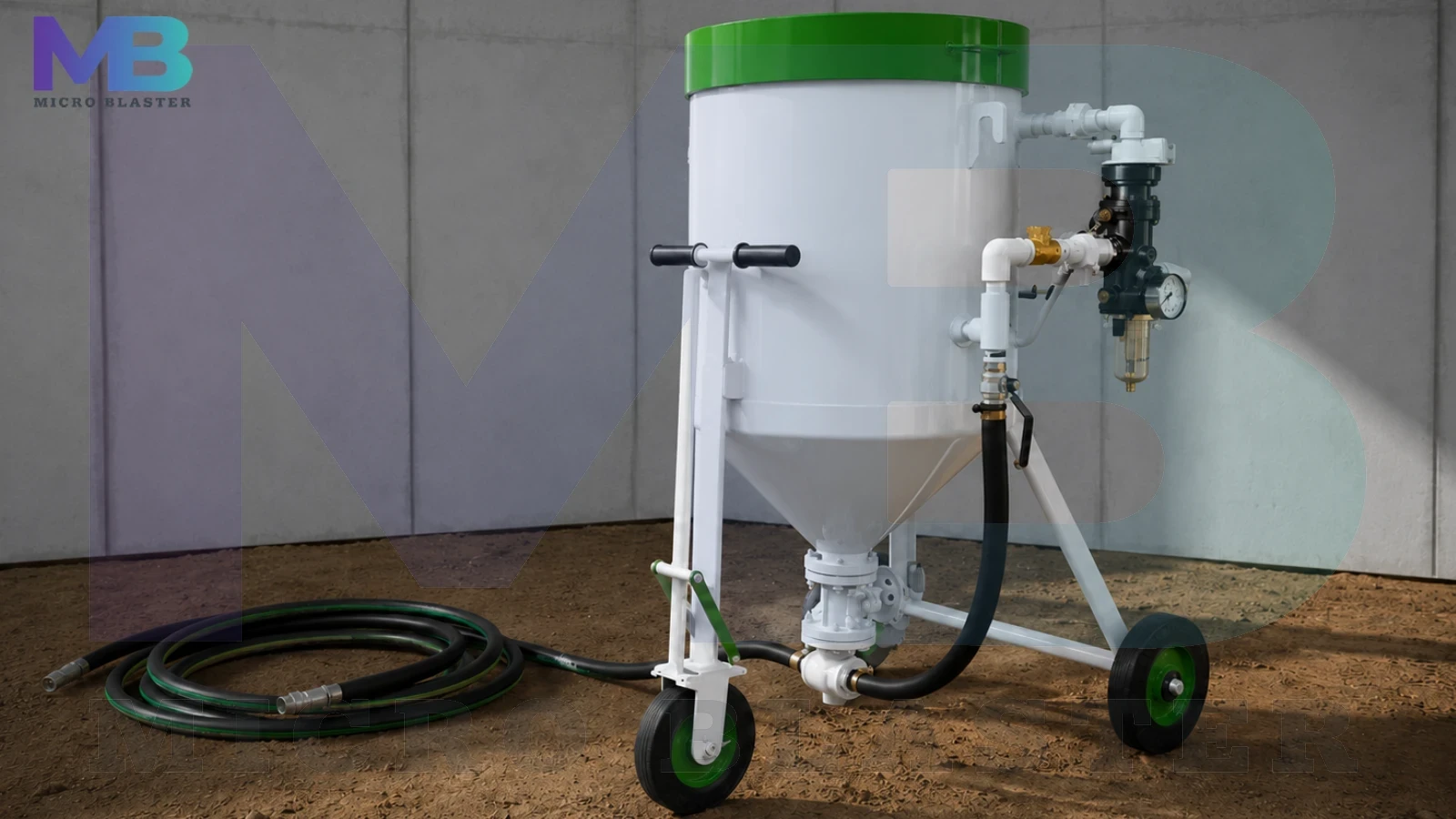

Portable grit blasting Machine P7 500 & 500 R or mobile grit blasting equipment has medium-sized blasting pot (500kg) thus also known as portable grit blasters & portable grit blasting units. It is having a moderate cleaning rate. This machine has two models, One is On/Off by Remote Control & Deadman Handle and the other is on / off manually. When Operators want to off the machine then it leaves the deadman handle, then depressurizes the portable grit blasting machine.
If the operator wants to on mobile Portable grit blasting equipment then he presses the deadman lever then Pressurization occurs into the portable grit blasting units. Leaver is located near the grit blasting nozzle so it can easily handle. It is also known as blasting pot, grit blasting hopper as it can easily move from one site to another.
Portable grit Blasting Machine P7 500 & 500 R medium capacity is low cost at maximum working time.
| Abrasive Tank Capacity (Metallic) | 500 Kg |
| Abrasive Tank Capacity (Sand) | 230 Kg |
| Volume | 142 Ltrs. |
| Gritblasting Hose Length | 7.5 mtrs. |
| Gritblasting Hose I.D. | 25 mm |
| Grit blasting Nozzle Orifice (Tungsten Carbide) | 6 / 8 mm |
| Height | 1321 mm |
| Diameter | 621 mm |
| Weight | 192 Kg |

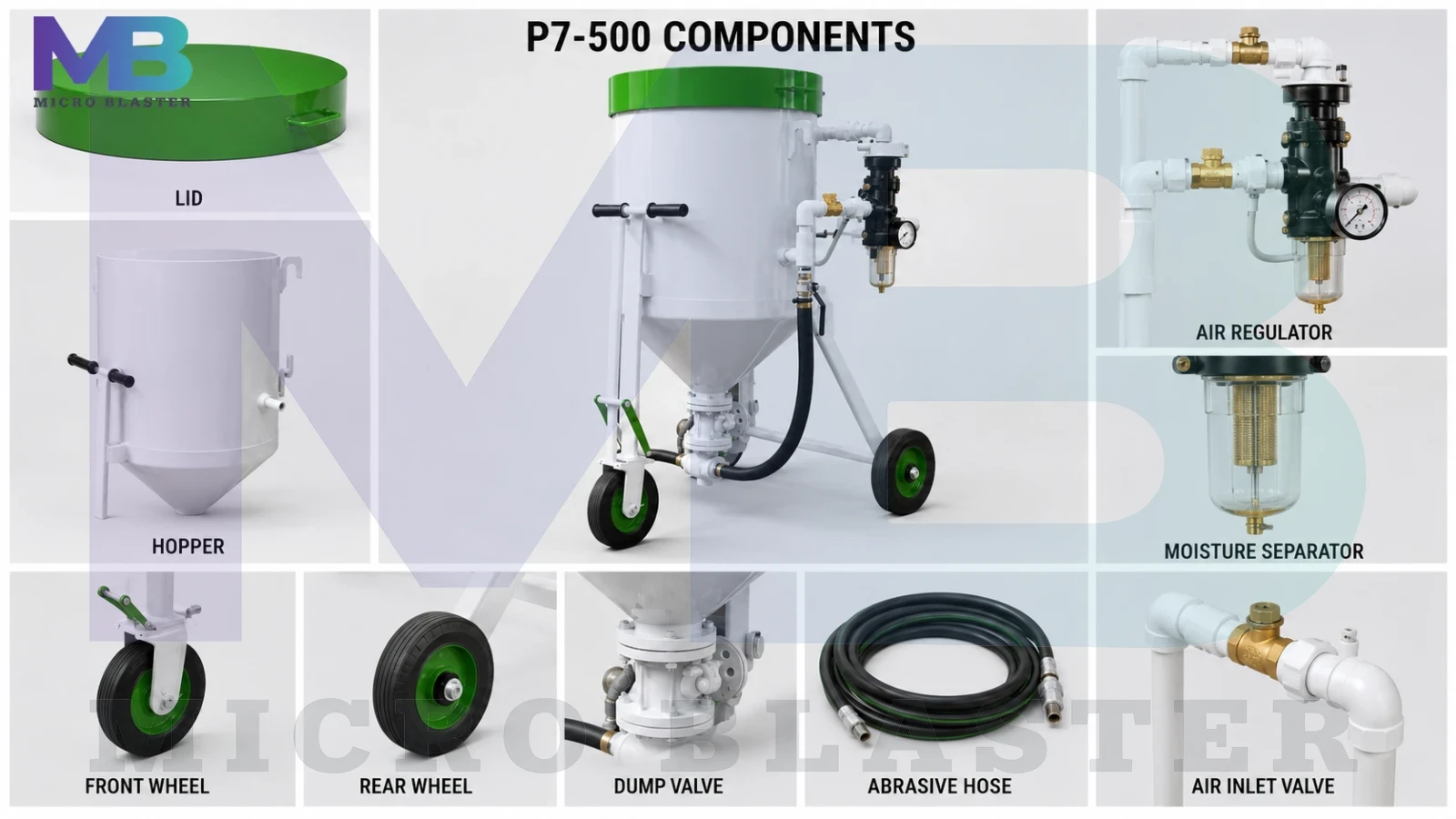

| Air Filter & Pressure Gauge fitted | 1 No. Each. |
| Automatic Exhaust Valve fitted | 1 No. |
| Abrasive Control through Pinch Valve fitted | 1 No. |
| Approx. Cleaning Rate [Only for guidance] | 9-12 Sq. Mtrs./Hr. |
| Compressed air required at 80 psi. | 113 cfm |
| Recommended Abrasive Size | 16 to 80 Mesh. |
Grit blasting machines are giving judicious substitutes to work since these machines district unit in a split second and effectively. You'll have the alternative to fundamentally put the hose at a little corner and clean it with satisfaction. Shot blasting is a reasonable decision to treat the surface, paint arranging, peening of metals, and conjointly sensible in layer cleaning occupations. in any case, since they use a nice measure of force going through absolutely extraordinary instrumentation and the metal surface of the release centers, the segments locale unit considered to ask broken extra time.
On account of constant blasting, cornmeal, and troublesome shots, the segments break and shot blasting transforms into a strategy for help. Contact Us for buying portable grit blasting machine P7 500 & 500R.
Enquiry form
Fields marked with * are required.
FAQ
Quick clarity on quotation, supply and what our team needs to size 500 Kg Portable Grit Blasting Machine correctly.
P7 500 & 500 R is a product in the Micro Blaster range for grit blasting, shot blasting and industrial surface preparation. It is selected based on your process, finish requirement and production volume.
P7 500 & 500 R supports surface cleaning, preparation or process efficiency in blasting operations. Tell us your component type and finish target so we can confirm suitability and recommend compatible media or equipment.
Share your application, quantity, finish requirement and delivery city or port. We provide a manufacturer-direct quotation with clear commercial scope for supply, packing and freight.
Yes. Micro Blaster supplies P7 500 & 500 R domestically across India and for export shipments, with documentation support for commercial orders. Mention your destination and timeline when enquiring.
Most enquiries receive a reply within one business day during working hours. Include application details, quantity and delivery location for the fastest technical and commercial response.
